SIMOND STORE Blacksmith Coal Forge 10 X 12 Inch, 2600F Rated, Welded Blacksmithing Firepot for Knife Making Farrier Forging Blacksmith Tools & Equipment
$179.99 $228.99
- Firepot: The inside dimensions are around 10 “”x 12″” x 5″”. 100% 1/2 steel has been used to construct a “”thick, both internally and externally welded plate steel which has been plasma cut. The ideal forging parameters include a rectangular hole that is at least 10.5″” x 12.25″” and up to 11.75″” x 13.75″”.
- Clinker Breaker: The Clinker Breaker on a 1/2 inch rod has a turn-down end that works as a handle and is rotatable; it is used to simply remove waste ash dump and allow air to blow in the firepot. It perfectly fits into the ash dump’s slot.
- Air Inlet Pipe: The air inlet pipe, which is 3″” round (OD) and 4.5″” long, allows air to enter the firepot from the attached hand crank blower, increasing the amount of oxygen that reaches the coal at the firepot’s bottom and allowing the coal to burn completely to create the ideal forging temperature.
- Ash dump that is automatically adjustable: The bottom of this firepot is equipped with an ash dump. An automatic open-close function is included on the weighted ash dump. When waste ash dumps are produced, you don’t have to manually open the weighted ash dump; it opens and shuts on its own.
- Wide Application: A blacksmith’s workshop has several tools needed, but the firepot is one of the most essential. Ideal for forging with the help of a hand crank blower hammers, punches, tongs, and other metalworking jobs.
Out of stock
Description
Perfect Design
Fabricated Firepot is one of the important tool in a blacksmith’s workshop. It is the Perfect replacement for your cast iron firepot, fixing up an old forge, or building up a new forge with the help of a Hand Crank Blower.
Product Features

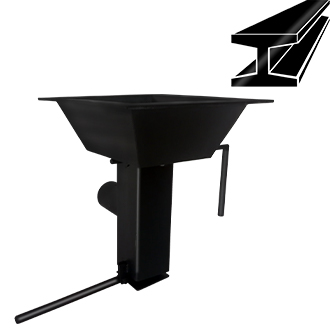

Premium Material
This Handmade blacksmith coal forge firepot is made of a ½” Thick Steel Plate and strongly welded inside and out, making it more heavy-duty than the cast iron firepot. So, when exposed to temperature Changes this fabricated firepot does not create any cracking like cast iron.

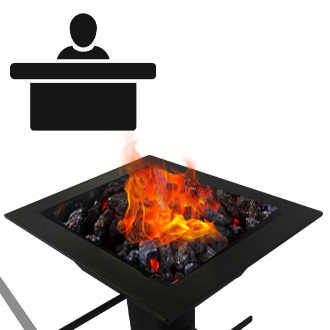

Large Working Area
Inside of the Coal Forge firepot measures 10” x 12”. It provides a large working area for forging your handmade hammers, punches, tongs, and other metalworking operations. Perfect choice for any blacksmith, metal worker, or aspiring forger.

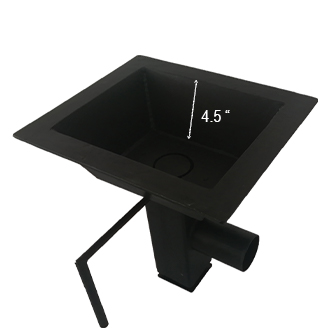

Deep Firepot
It has a 4.5” Deeper Firepot which is 30 % deeper, providing more area for blacksmithing coal forge. Perfect choice for performing your desired operation.

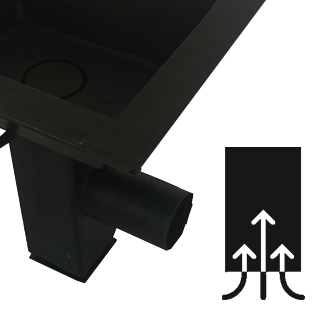

Air Inlet Pipe
Air inlet pipe 3” round (OD) and 4.5” Long, lets the air come into the firepot from the connected hand crank blower, allowing more oxygen to reach the coal at the bottom of the firepot, and let coal fully burn to provide the perfect forging temperature.

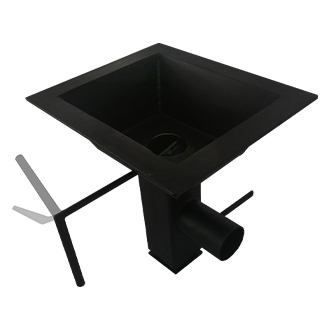

Clinker Breaker
The Clinker Breaker on ½ inch rod has a turn-down end that serves as a handle and is rotatable, it is used to easily remove waste ash dump as well as let the air blow in the firepot. It is perfectly fit for the slot in the ash dump.

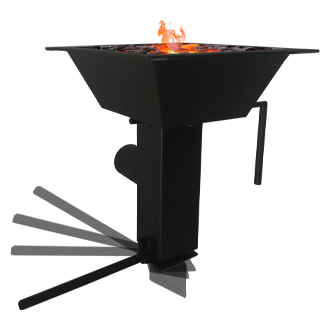

Auto adjustable Ash dump
This firepot design is featured an auto-adjustable ash dump at the bottom. The weighted ash dump has an auto open-close feature. You don’t need to manually open the weighted ash dump when waste ash dump produces, it opens automatically and also automatically closes.

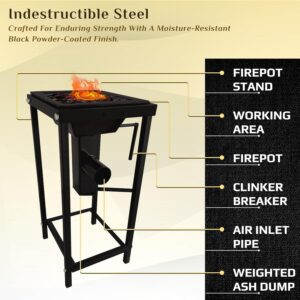

Product Specifications
| Material: | MS ½ inch thick plate |
| Inside Dimension | 10” x 12” x 4.5” |
| Fits in Regular Hole | Minimum 10.5” x 12.25” – Maximum 11.75” x 13.75” |
| Clinker Breaker | ½ inch thick plate and round handle. |
| Weighted Ash Dump | 11” long and 3.5” square cross-section |
| Air inlet Pipe/td> | 3” Round (OD) and is 4.5” long |
| Inside Depth | 4.5 inch |
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| Blacksmith Coal Forge Fire Pot Stand | Blacksmith Coal Forge Fire Pot Large Stand | Blacksmith Coal Forge Fire Pot Large Stand & Hand Blower | Blacksmith Coal Forge Fire Pot Large Stand & Hand Blower | Blacksmith Coal Forge Fire Pot Large Stand & Hand Blower | Blacksmith Coal Forge Fire Pot | |
| Outer Dimension | 15”(L) x 13”(W) x 22”(H) | 30”(L) x 24”(W) x 32”(H) | 30”(L) x 24”(W) x 32”(H) | 30”(L) x 24”(W) x 32”(H) | 30”(L) x 24”(W) x 32”(H) | 12”(L) x 14”(W) x 16”(H) |
| Blower Included | X | X | ✓ | ✓ | ✓ | X |
| Fire Pot Included | ✓ | ✓ | ✓td> | ✓ | ✓ | ✓ |
| Blower Size | X | X | Casing measure (8″) , Air outlet (2″) , Gear ratio (1:28) | Casing measure (6″) , Air outlet (1.5″) , Gear ratio (1:28) | Casing measure (11″) , Air Outlet (1.25″) , Gear ratio (1:28) | X |
Product information
| Product Dimensions | 12 x 14 x 16 inches |
| Item Weight | 45 pounds |
| Manufacturer | Spectra Overseas |
| ASIN | B08K7C45NX |
| Item model number | PF-POT |
| Customer Reviews | 4.2 out of 5 stars |
| Is Discontinued By Manufacturer | No |
