SIMOND STORE Ceramic Fiber Baffle Board Replacement for Quadrafire Stove & Insert 4100I-ACT – Bodega Bay 832-3520 – 2300F Rated – 18.5″ x 12.5″ x 1/2″
$79.90 $99.99
- Replacements: This refractory ceramic fiber baffle board is the perfect replacement part for Quadra-Fire # 832-3520.
- Compatibility: This baffle board is compatible with Quadrafire 4100I-ACT, Quadrafire – Bodega Bay Insert, including models 4100I-GD-B and 4100I-NL-B.

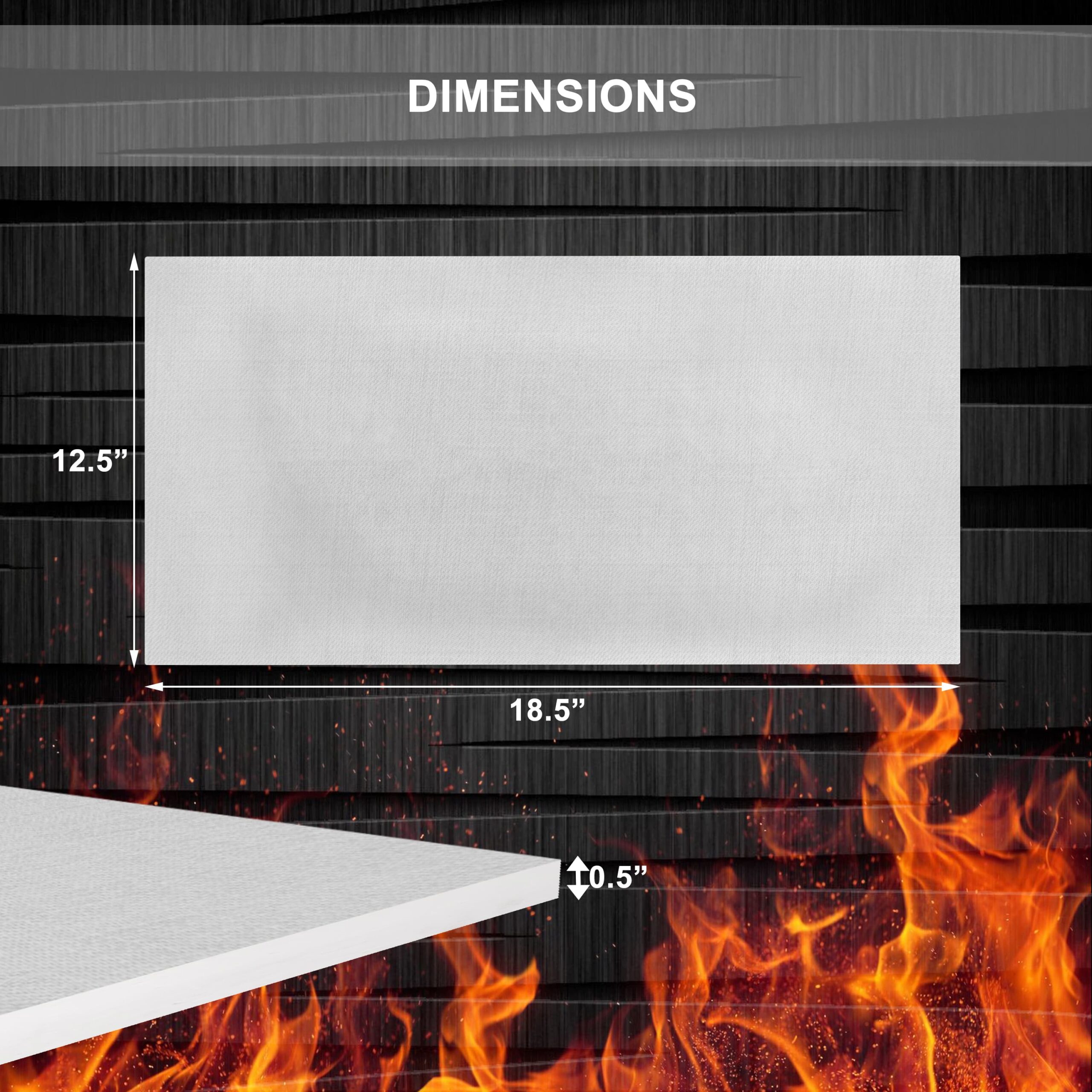

- Dimensions: Each Baffle Board measures 18.5″” (L) x 12.5″” (W) x 1/2″” (T) Approx.

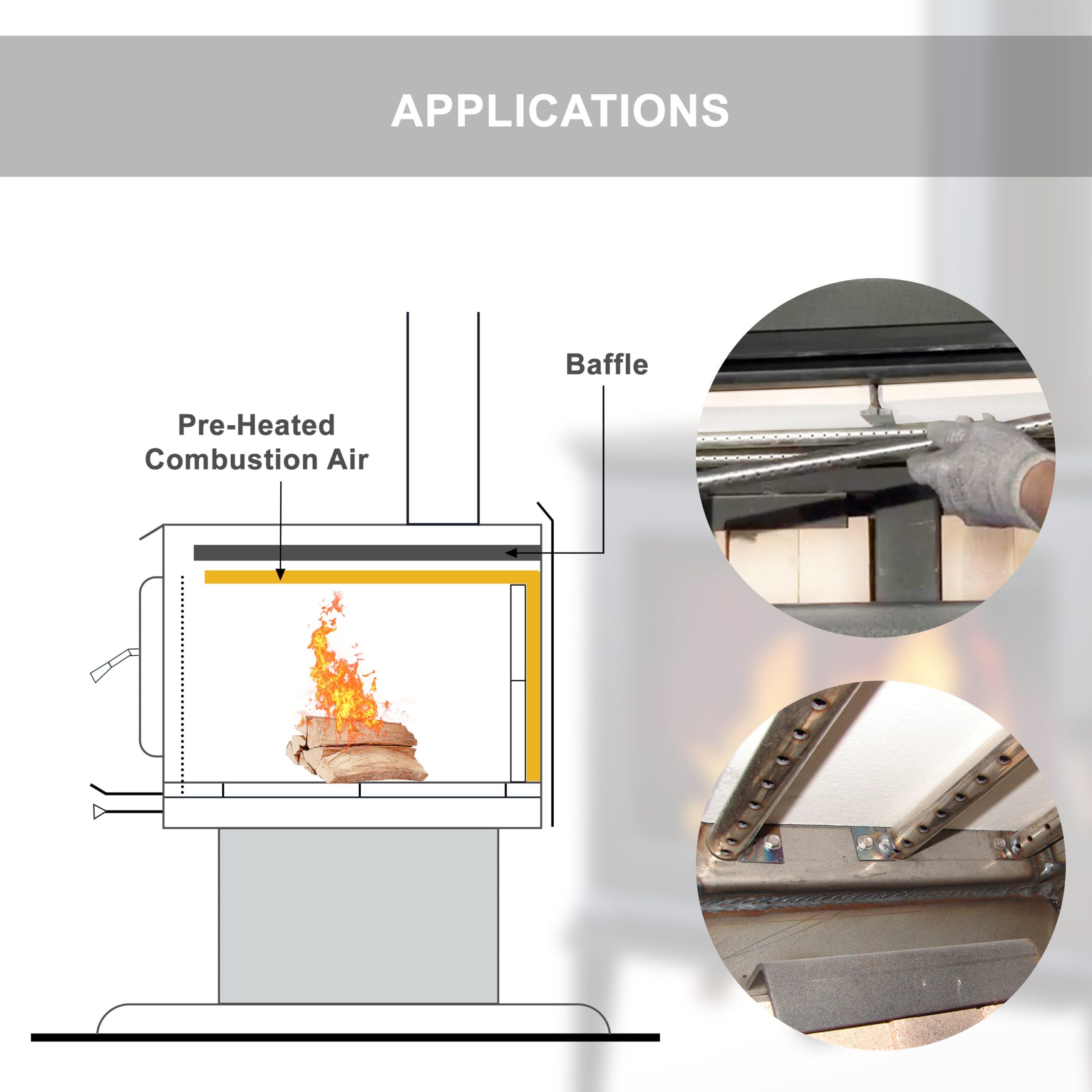

- Purpose: To replace burned and worn-out baffles Inside the firebox, on top of the secondary air tubes. The pre-cut size baffle is simple to replace, Its high heat resistance features help to keep warm air and waste gases inside the firebox for longer, allowing the burning fuel to produce even more heat.

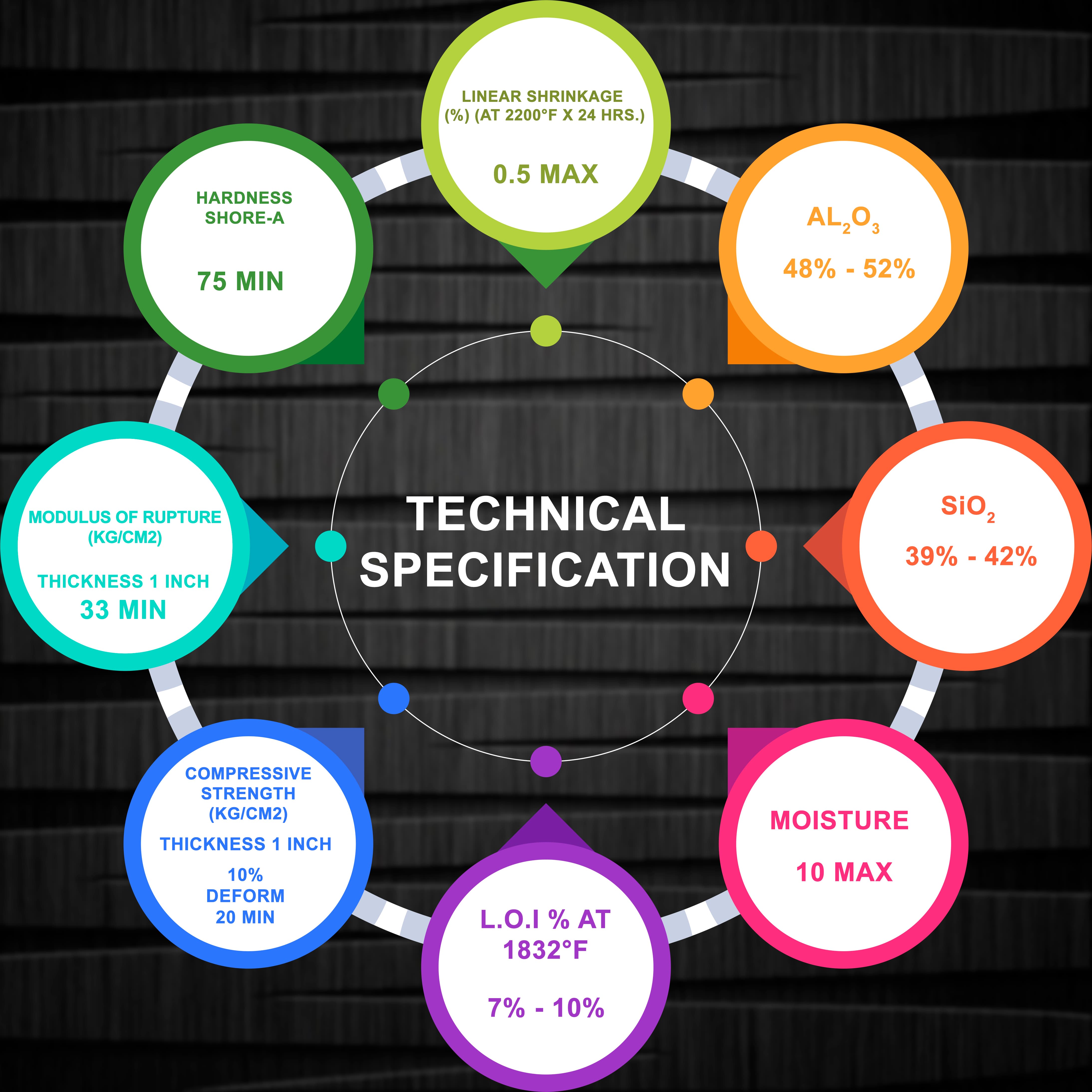

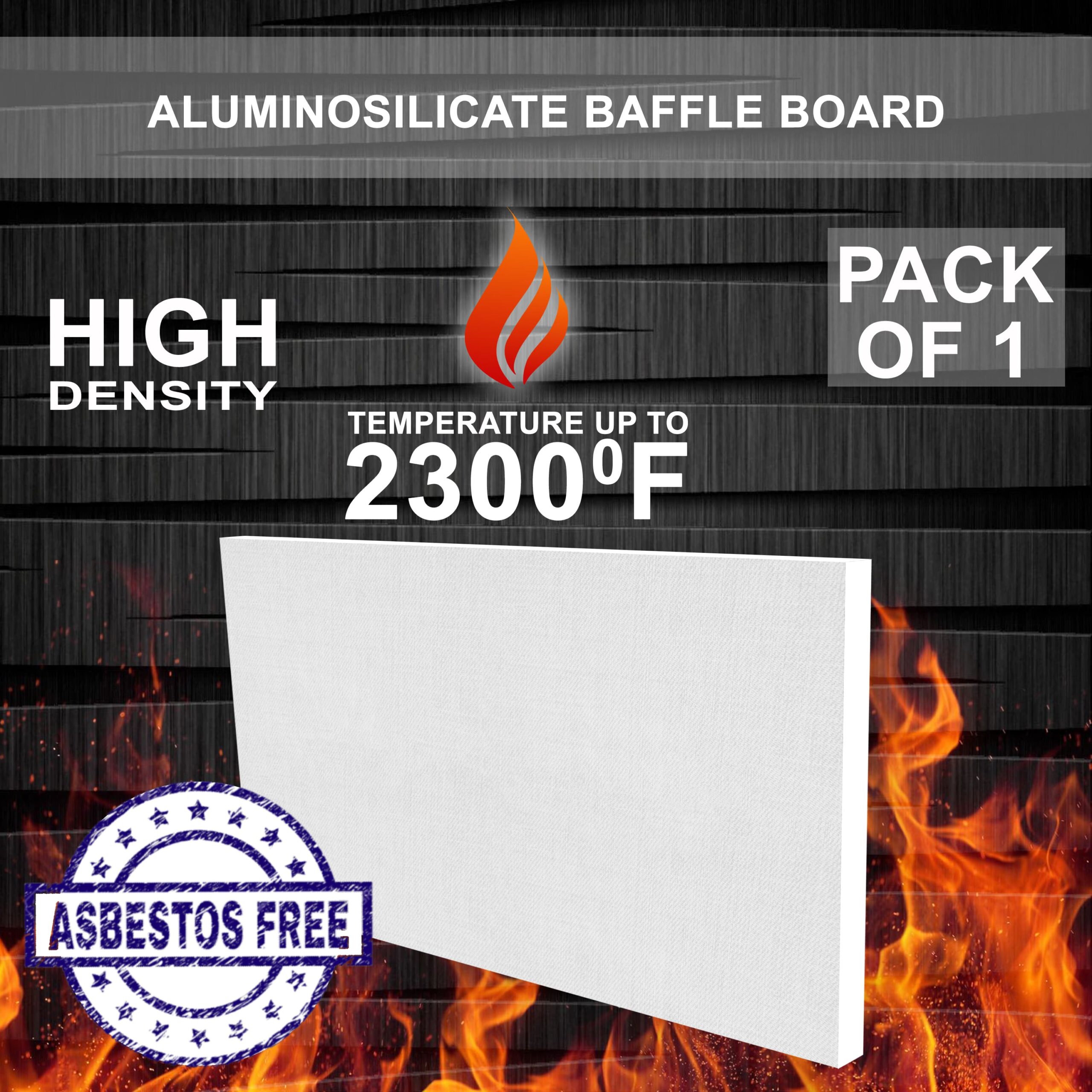

- Material: This high temperature dense and low thermal conductivity ceramic baffle is composed of refractory ceramic fibers and specialty clay-based minerals, and has unique features such as compressive strength, hot gas erosion resistance, and durability. It can withstand temperatures of up to 2300°F
Only 5 left in stock - order soon.
Description
Baffle Board
Key Product Feature
Low Thermal Conductivity
Low thermal conductivity of the Board reduces heat transfer.
High Heat Resistant
Baffle board has high heat resistance and can withstand temperature up to 2300F
Chemical Resistant
Remains unaffected when exposed to chemicals due to its excellent resistance against chemical attacks.
Thermal Shock Resistant
It can easily withstand extreme and rapid changes in temperature.
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| Replacement Baffle Board 2 Pcs Set – SRV7037-112 – 2300F – BB-950155 | Replacement Baffle Board- AC-30CFB – 2300F – BB-950185 | Replacement Baffle Board for Englander – 2300F – BB-100210 | Replacement Baffle Board, AC-13CFB Englander 13 Series – 2300F – BB-105210 | Replacement Baffle Board – US Stove Model 3000 – 2300F – BB-115185 | Replacement Baffle Board, SRV433-0910 – 2300F – BB-120235 | |
| Temperature Grade (F) | 2300 | 2300 | 2300 | 2300 | 2300 | 2300 |
| Size (T x W x L) | 0.5″ x 9.5″ x 15.5″ | 0.5″ x 9.5″ x 18.5″ | 0.5″ x 10″ x 21″ | 0.5″ x 10.5″ x 21″ | 0.5″ x 11.5″ x 18.5″ | 0.5″ x 12″ x 23.5″ |
| Qty | 2 | 1 | 1 | 1 | 1 | 1 |
Product information
| Product Dimensions | 18.5 x 12.5 x 0.5 inches |
| Item Weight | 1.45 pounds |
| Manufacturer | Spectra Overseas |
| ASIN | B0CH538JLP |
| Item model number | BB-125185.. |
| Best Sellers Rank | #2,538,727 in Home & Kitchen #700 in Fireplace Replacement Parts #639,558 in Home Décor Products |
| Is Discontinued By Manufacturer | No |
| Number of pieces | 1 |
| Batteries required | No |
