Description
Key Product Feature
The rollers of this rolling mill machine are made of steel material, which is hardened to approximately 60 HRC for superior deformation resistance.
The combination rolling mill machine is all powder coated for superior corrosion resistance and appearance.
The jewelry rolling mill machine is designed for cold rolling metal and is used for reducing the thickness of sheet metal and wire.

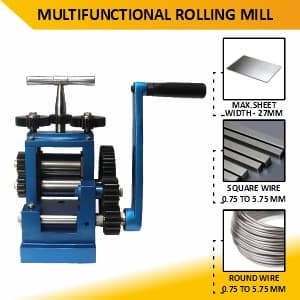

Max Sheet Width: 27 mm
Square Wire: 0.75 mm to 5.75 mm
Round Wire: 0.75 mm to 5.75 mm
“T” Shape Handle connected to the parallel adjustment gears, allowing you to set the distance between rollers according to the textures of applications.
The combination rolling mill is designed with an easily turned portable short handle comfortable to hold for smooth operation and saving labor.
Two bolting holes are provided at the base of this manual rolling mill to mount it to your workbench. Allowing to work steadily and with less noise.
WIDE APPLICATION
PRODUCT SPECIFICATION
Material | Stainless Steel |

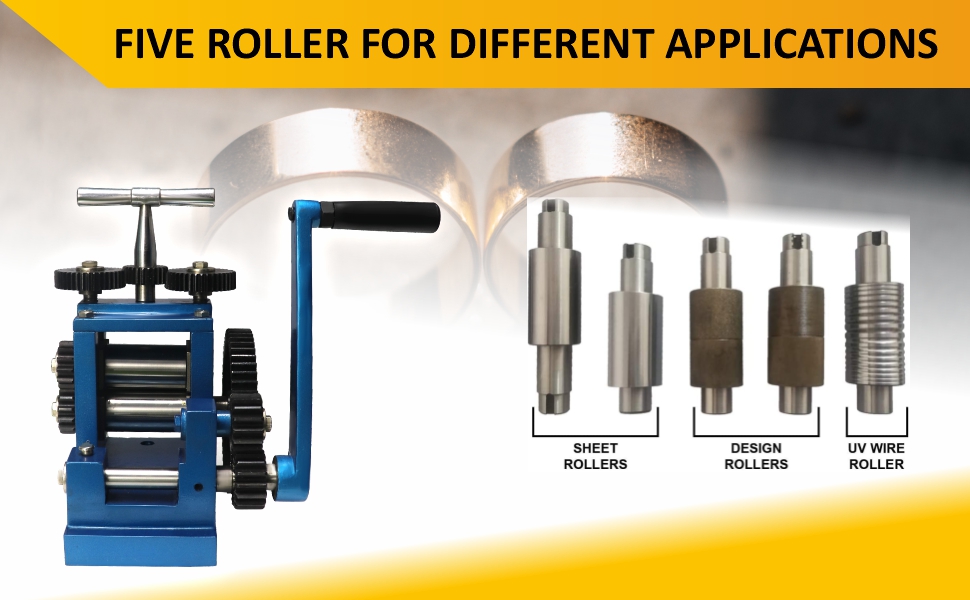

7 Rollers | 2 Flat, 2 Pattern, 2 Wire Groove, and 1 half round and V groove |
Rollers Width and Diameters | 3 inch X 1.6 inch (76 X 41 mm) |
Maximum Apertures of Roll | 4 mm |
Gear Ratio | 3.15:1 |
Overall Machine Dimension | 220 X 190 X 300 mm |
Max. Sheet Width | 27 mm |
Square Wire (+/- 0.01 mm) | 0.75 mm to 5.75 mm |
Round Wire (+/- 0.01 mm) | 0.75 mm to 5.75 mm |
Gross Weight of Machine | 23 Kg |
